Rebound Schmidt Rebound Hammer Test with Engineering Plastics Case Standard

Name: Rebound Schmidt Rebound Hammer Test with Engineering Plastics Case Standard
Brand: Tmteck
Price: 1 USD

Cheap Rebound Schmidt Rebound Hammer Test with Engineering Plastics Case Standard for sale

Brand Name : Tmteck

Model Number : TMH-225+

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 100pcs/month

Delivery Time : 3-4 days

Packaging Details : 1pc in carrying case and per carton box

Price : Negotiation

Test range : 1.0~25Mpa

Standard impact energy : 0.196J(0.02kgf.m)

Stroke of rebound hammer : 75mm

Friction of pointer slider : 0.4N~0.6N

Sphere radius of rebound pole SR : 25mm

Contact Now

Brief introduction:
The test hammer submit to standard of GB/T9138-1988 and JJG817-93 and JGJ/T23-2011 and ASTM C 805. HT-225 concrete test hammer is applied to test the compressive strength of building concrete components, bridge and so o

Trait:

1) Center rod is made from imported material, high accuracy and durable resistance.

2) The shell is made form high Aluminum in order to perfect protect instrument from damage and extend use life.

3) Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate. Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.

Parameter:

Test range	10~60Mpa
Standard impact energy	2.207J(0.225Kgf.m)
Stroke of rebound hammer	75mm
Friction of pointer slider	0.5N~0.8N
Sphere radius of rebound pole SR	25mm1mm
Average rebound value on steel anvil Rm	80±2
Size	54*278mm
Weight	1KG

Product Tags:

concrete hammer test machine

ndt rebound hammer test

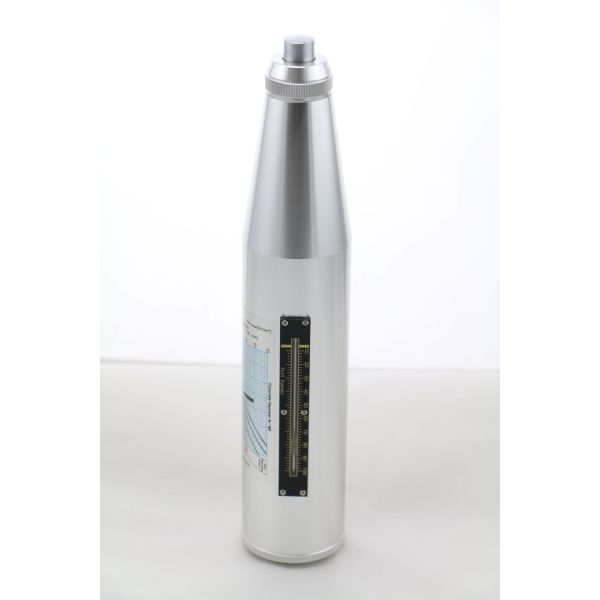

Rebound Schmidt Rebound Hammer Test with Engineering Plastics Case Standard Images
