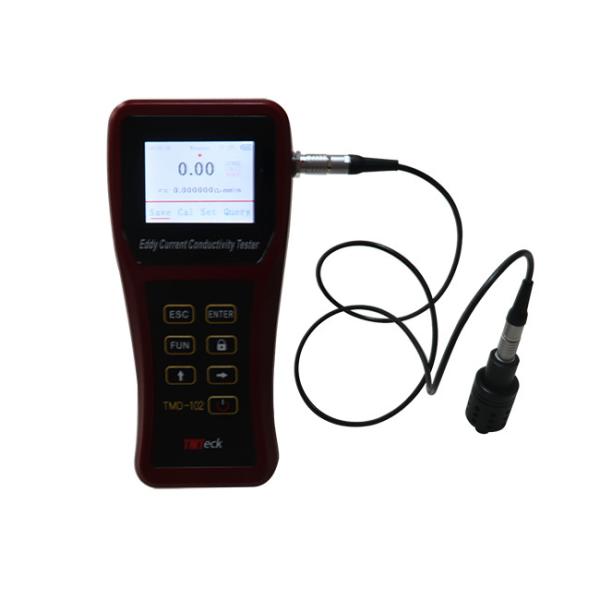

Eddy Current Electrical Conductivity Meter TMD-102
TMD-102 is a kind of eddy current electrical conductivity meter, which is designed for quick & convenient measurement of material property, such as material separate,quality control,material state check and so on. It uses the electromagnetism testing principle. Testing objects focus on non-ferromagnetic material.
Features
★ The meter uses 60 KHz (aviation industry standard) to inspirit, and the testing data can be read in two kinds of unit: %IACS or MS/m.
★ Its big typeface, the back light illumination designs are advantageous for users to take the testing data even in low light condition.
★ Two kinds of operate languages satisfy different national demand.
★ It uses the high property battery to make sure it keeps more running time, and because of its mini-size, it is easy to carry and to grasp hold.
★ The design of the meter is more advantages: user can replace the probe in the outdoor, don’t need to return to the company to adjust the probe into matching the meter.
★ It can store 1000 measurement data.
Applications
★ Test the conductivity of aluminum, copper and other non-ferrous magnetic metal in the processing industry.
★ In the aerospace and automotive industries,monitor the process of heat treatment, the strength and hardness of aluminum alloy.
★ Test the conductivity aluminum when it has not been oxidized.
★ Test the purity grade of materials.
★ Test materials resistivity.
★ Material Thermal Performance analysis.
Technical parameters
| NAME | CONTENT |
| Measurement technology | Eddy current |
| Operating frequency | 60KHz,240KHz |
| Display screen | 240X320 pixels TFT-LCD；4 kinds of background color |
| L*B*H | 180*80*30 mm |
| Instrument case | Anti-intense impact,water-proofing polyester |
| Weight | 260g |
| Power supply | High capacity, high performance lithium polymer battery |
| Measuring range | Conductivity | 6.9%IACS—110%IACS(4.0 MS/m -64MS/m) |
| Resistivity | Correspond the Conductivity |
| Distinguishing rate | 0.01% IACS 0.000001Ω·(mm)2/m |
| Measuring accuracy | 0°C to 50°C 0~23%IACS :±0.1%IACS 23%IACS~110%IACS :±0.3%IACS |
| Temperature compensation | Automatic compensation to the value of 20 ℃. |
| Normal work environment | Relative humidity | 0～95% |
| Operating temperature | 0℃～50℃ |
| Language | English,Chinese |
| Fitting | Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter. |
| Probe | Diameter:12.7mm (Applicable to minimum measuring area diameter at 60KHz is10mm.) |
| Diameter: 8mm (Applicable to minimum measuring area diameter at 240KHz is 7CM |
Note: The conductivity measurements automatically rectified to the value at 20℃.
